Step 7. Order aligners or printed models or export .STL files for your lab

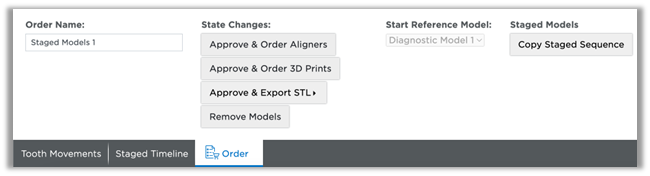

After you finish reviewing the staged models, you have the option to order aligners or printed models from SureSmile or export 3D files to send to your lab for appliance production. Navigate to the Order tab to see your options.

Approve & Order Aligners Option

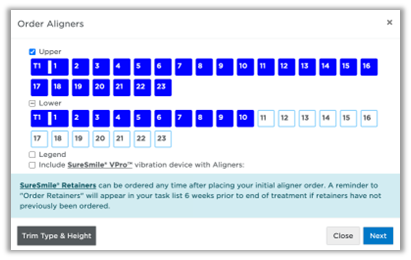

If you choose the Approve & Order Aligners option, the Order Aligners dialog box opens. All active stages are selected by default; passive stages are deselected by default. Active stages are marked dark blue; passive stages in light blue. If you want to order passive Aligners, select the desired stages and click Next.
In subsequent orders for this patient you will see the small print icon placed on each Aligner already ordered.

Click Trim Type & Height to change the trim type and/or trim height for your Aligner orders.

Please note that you can change the trim type from scalloped to straight, but you cannot change from straight to scalloped. If you want scalloped, you will need to recalculate your staged models with the scalloped trim type.

Important: At this time, SureSmile® does not support a scalloped trim line for partially erupted teeth. If the case has a partially erupted tooth, please select the straight trim type.



Approve & Order 3D Prints Option

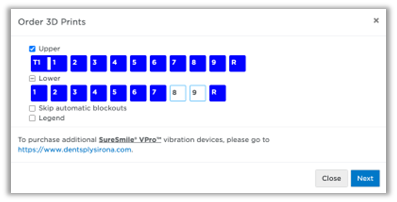

If you choose the Approve & Order 3D Prints option, the Order 3D Prints dialog box opens. All active stages are selected by default; passive stages are deselected by default. Active stages are marked dark blue; passive stages in light blue. If you do not want to order all models at this time, deselect unwanted models and click Next.

Approve & Export STL Option

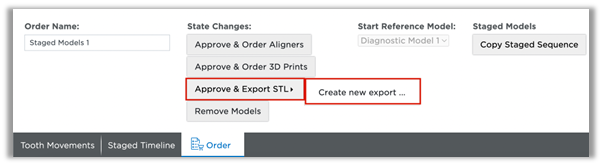

Click the Approve & Export STL button, then click Create new export…

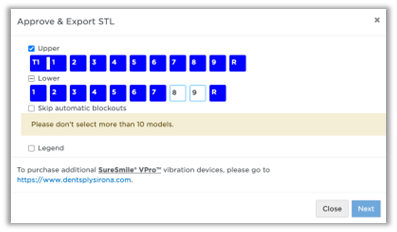

The Approve & Export STL dialog box opens. All active stages are selected by default; passive stages are deselected by default. Active stages are marked dark blue; passive stages in light blue. If you do not want to export all models at this time, deselect unwanted models and click Next.

Note: only 10 models can be exported at one time. To export more than 10 models you will need to create a new export to export subsequent models.

The IPR Tracking tab is displayed once the staged models are in an ‘Approved’ state. This tab allows you to see and track the amount of planned and completed IPR. You can use this tab to enter newly performed IPR and track completed IPR while in the Staged Models.

Reordering lost or damaged aligners and models

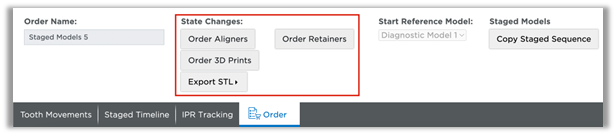

You can order replacement aligners, 3D prints or STL exports through separate orders. After you first order aligners or models or export STL files, the Approve & Order buttons change to:


You can reorder any of these items for the patient without having to resubmit a scan or updated records.
